Condition: Brand New
Tyre Quantity: 10 tyres
Engine Power: 350/380hp
Driving Type: 6x4
Loading Capacity: 20-30T
Product Parameters
|
Basic parameter |
Vehicle code |
BJ3259DLPKE-A1 |
|
|
Vehicle type |
Dumper |
|
|
Platform |
GTL |
|
|
Drive form |
6×4 |
|
|
LHD/RHD |
Both |
|
Dimension |
Wheelbase (mm) |
4100+1350 |
|
|
Chassis Dimensions (mm) |
(8600)8800×3400×2495 |
|
|
Cargobox inner Dimensions (mm) |
(5800)6000×2300×1100 |
|
Weight |
GVW (kg) |
55000 |
|
Cab |
Body type |
GTL |
|
|
Width(mm) |
2490 |
|
|
Height |
Flat roof |
|
|
Number of people/number of seats |
2 |
|
Engine |
Brand |
FOTON CUMMINS |
|
|
Model |
ISGe4-460 |
|
|
Type of fuel |
Diesel |
|
|
Displacement (L) |
11800 |
|
|
Max power (kw/hp/rpm) |
460 |
|
|
Max torque (Nm/rpm) |
2300/1000-1300 |
|
|
Emission |
Euro Ⅳ |
|
Gearbox |
Brand |
FAST |
|
|
Type |
12JSDX240T(Q)Iron |
|
|
Gear position |
12 MT |
|
Brake |
Brake type |
Air brake |
|
|
Auxiliary brake |
ABS |
|
Suspension |
Suspension form |
Leaf spring |
|
|
Leaf spring number(front/rear) |
9,12 |
|
Front/Rear axle |
Rated load of front axle(T) |
7.5T |
|
|
Rated load of rear axle(T) |
16T |
|
|
Gear ratio |
5.26 |
|
Tyre |
Model |
12R22.5 |
|
|
Quantity |
11 |
|
Frame |
Dimensions |
225/320×90×(8+7) |
|
Fuel tank |
Capacity (L) |
350L |
|
|
Material |
Aluminum alloy |
|
Additional configuration |
Multi-media |
MP3+radio+USB+no radar |
|
|
A/C |
Manual AC |

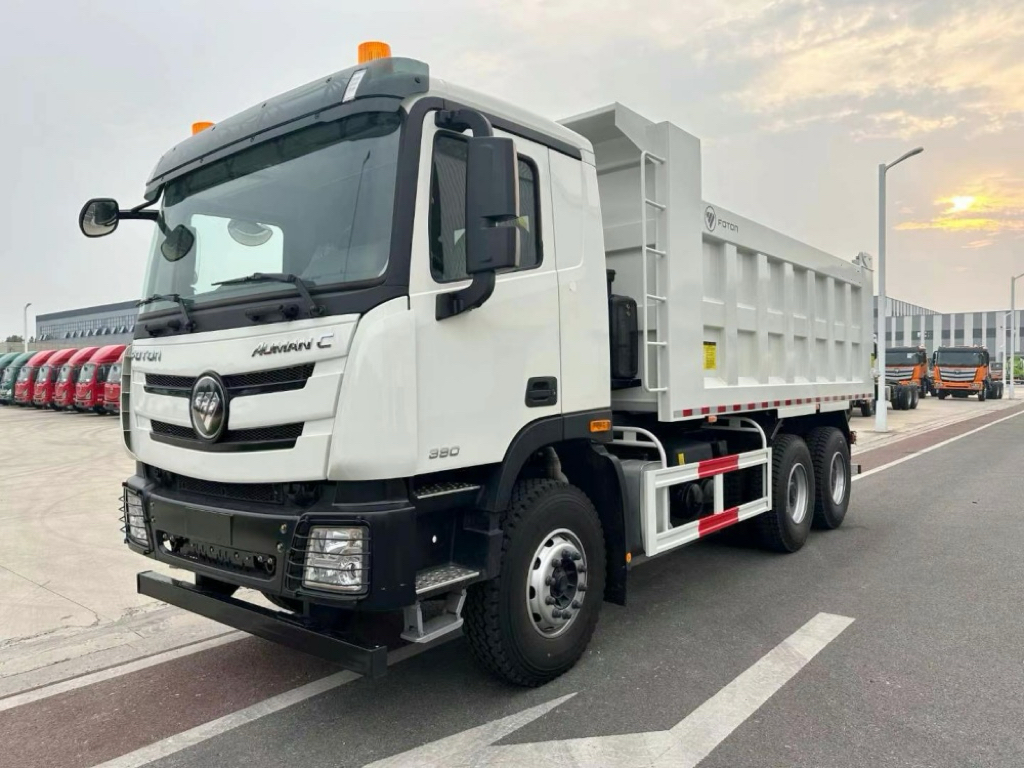

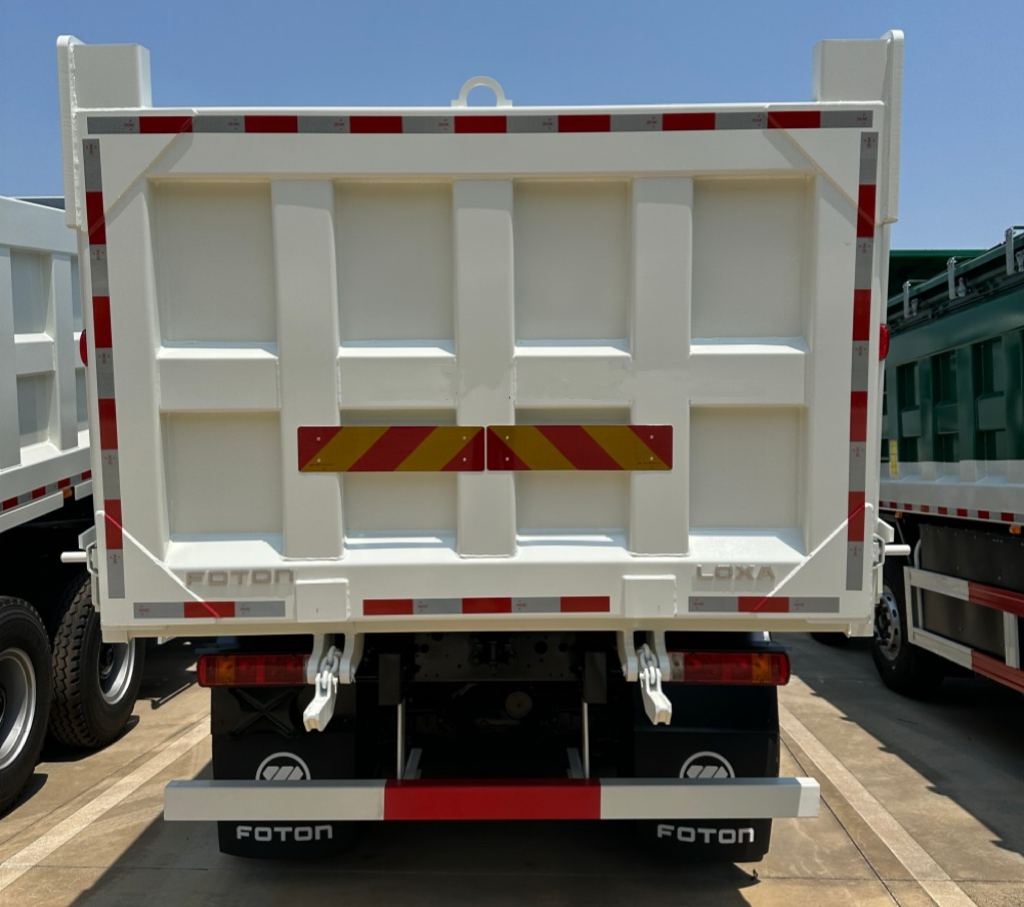

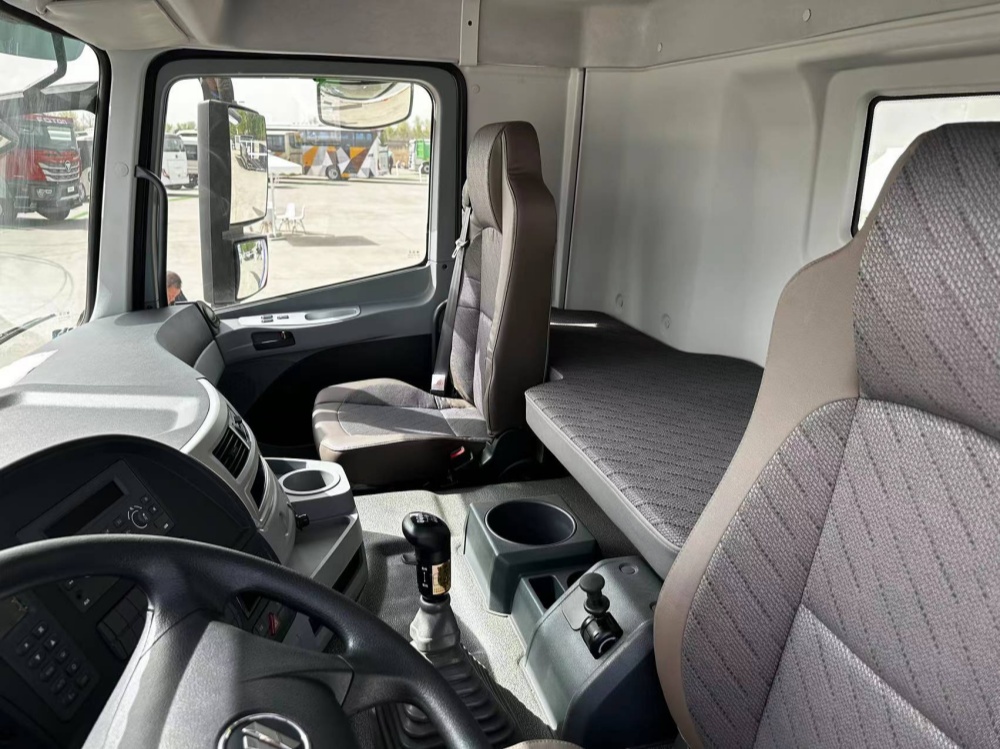

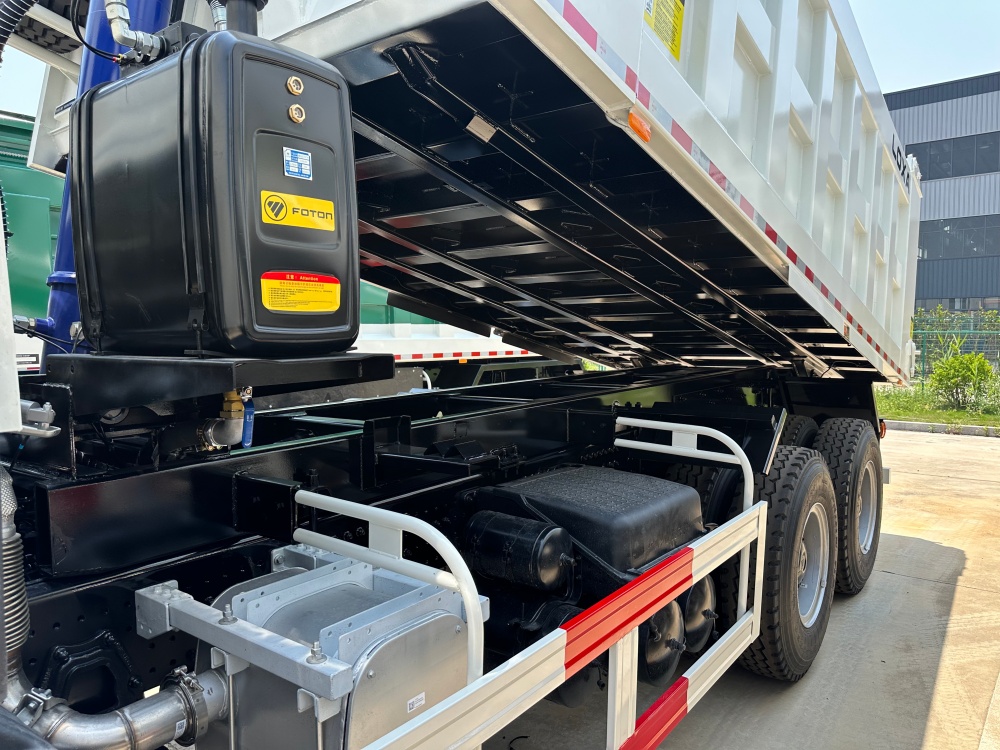

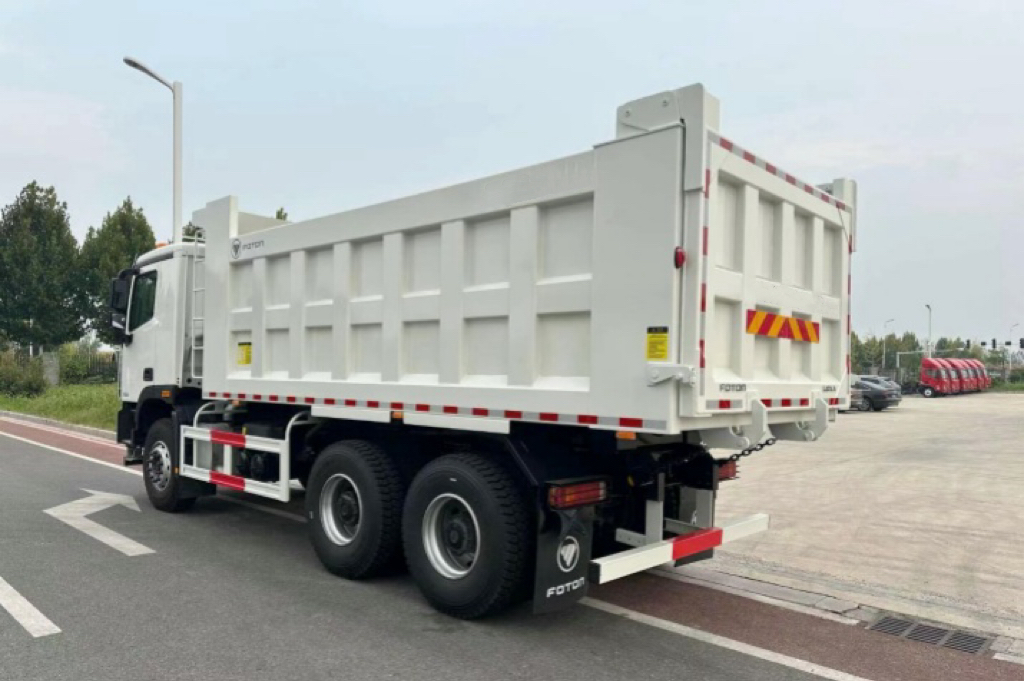

Product Images
