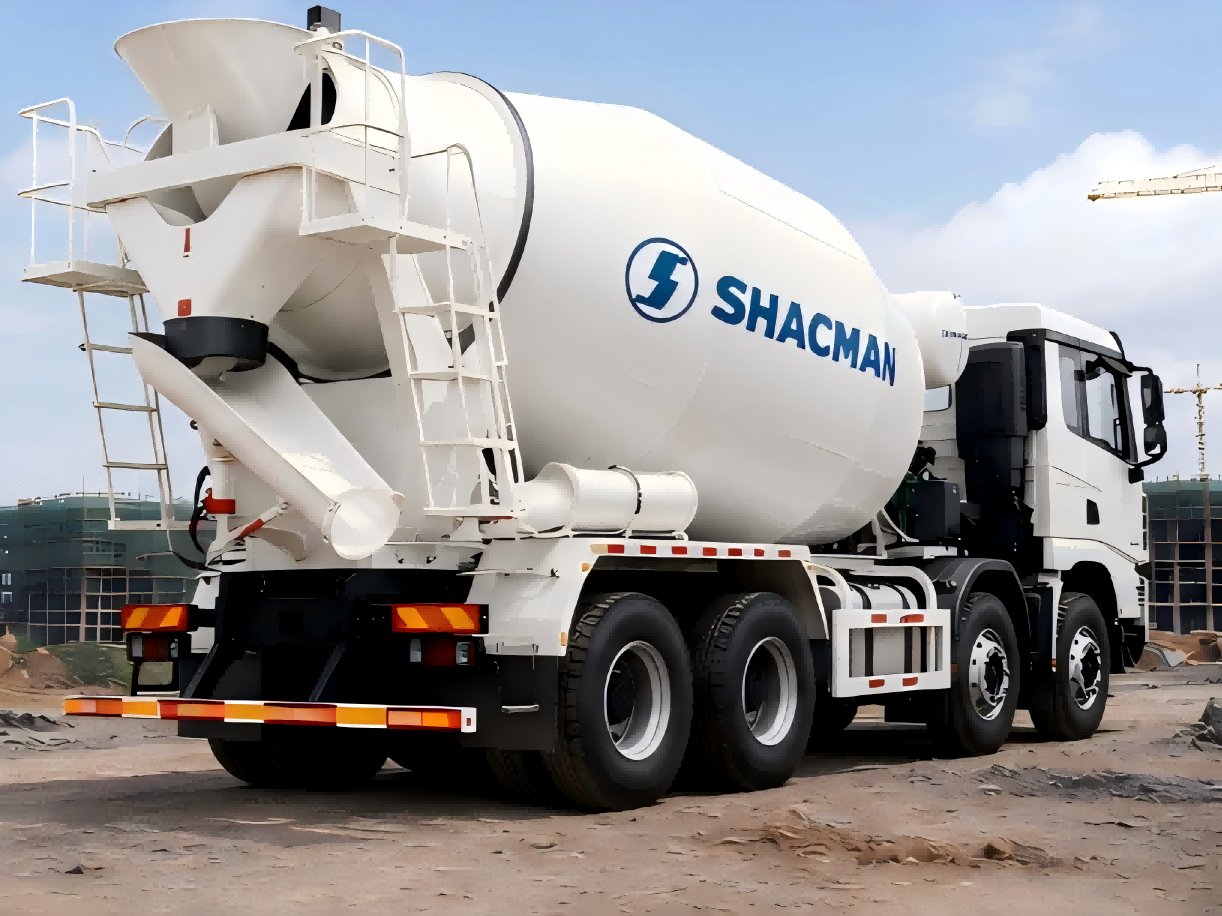

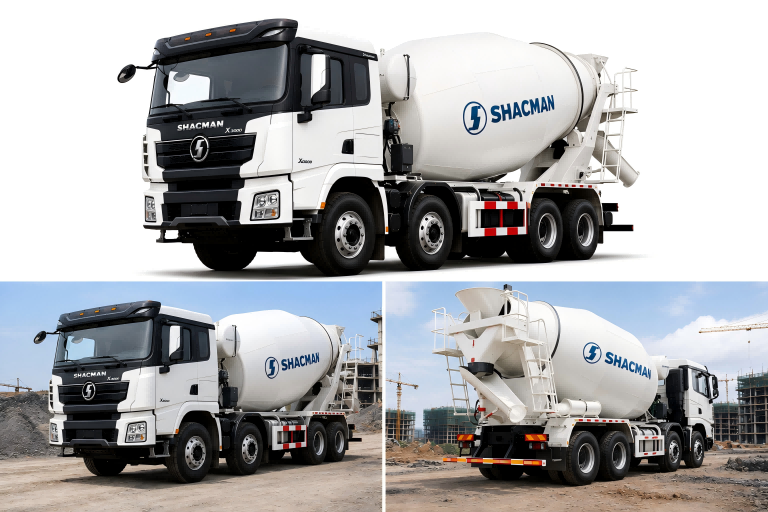

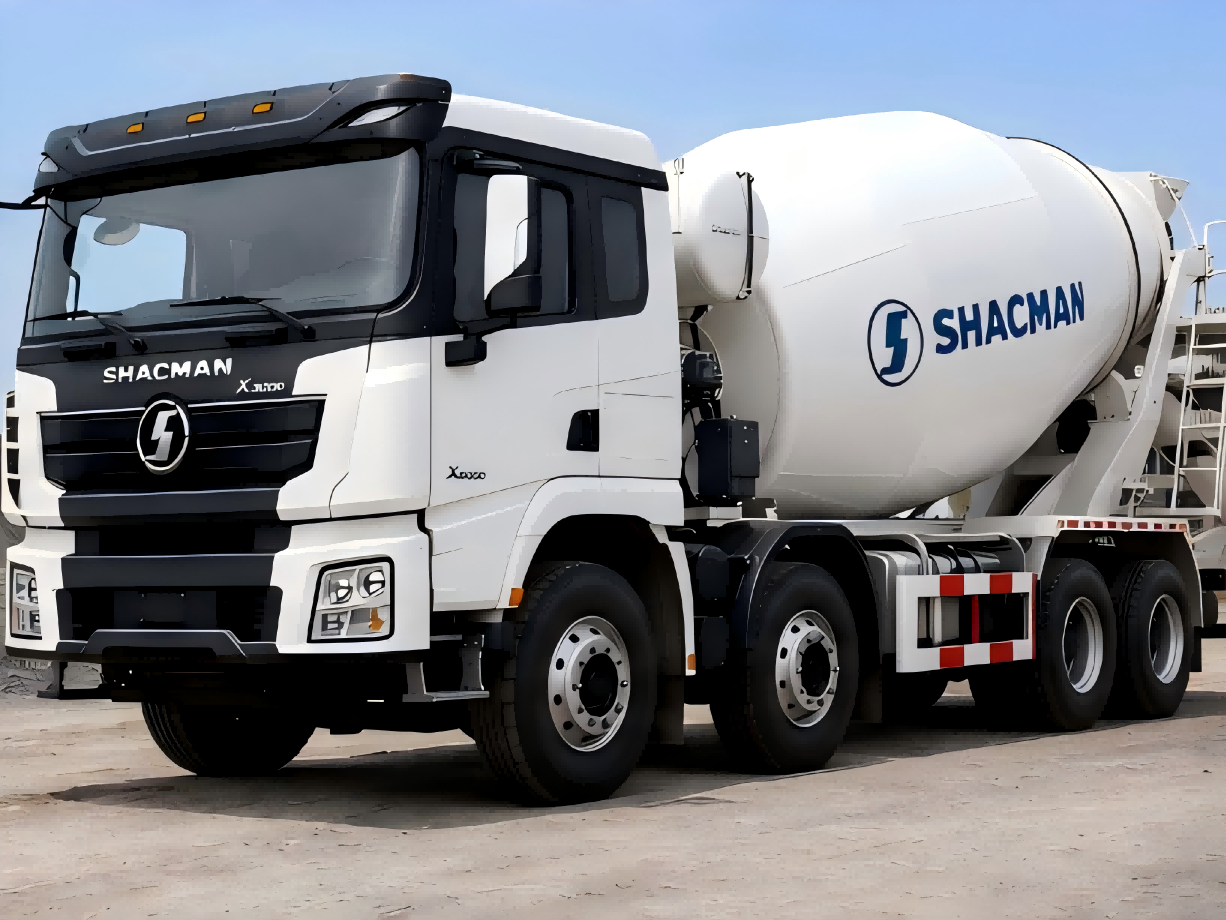

SHACMAN X3000 8X4 Cement Mixer Truck-Products Center-SHACMAN AFRICA

Parameter

Specification

Vehicle Model

SHACMAN X3000 Cement Mixer Truck

Vehicle Type

Concrete Mixer Truck

Drive Type

8×4

Cabin

X3000 High Roof Cabin With Sleeper

Driving Type

Left-hand Drive / Right-hand Drive

Seat Configuration

2 Seats + 1 Sleeper

Cabin Equipment

Air Conditioner, Air Suspension Seat, Electric Window, Central Lock

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP12.430E201

Horsepower

430 HP

Emission Standard

Euro II / Euro III / Euro V

Displacement

11.596 L

Maximum Torque

2060 N·m

Transmission Brand

FAST

Transmission Model

12JSD200T

Gearbox

12 Forward & 2 Reverse

Front Axle

9.5T MAN Axle ×2

Rear Axle

16T MAN Double Reduction Axle ×2

Axle Ratio

5.262 / 5.92 Optional

Steering System

ZF Hydraulic Steering

Brake System

Dual Circuit Air Brake

Parking Brake

Spring Energy Brake

ABS

Optional

Suspension

Heavy-duty Multi-leaf Spring

Fuel Tank Capacity

400 L

Tire Specification

12.00R20 / 315/80R22.5

Number Of Tires

12 + 1 Spare Tire

Wheelbase

1800 + 3175 + 1400 mm

Overall Dimension

10200 × 2550 × 3980 mm

Mixer Drum Capacity

10–14 m³

Mixer Drum Material

Wear-resistant High-strength Steel

Drum Thickness

5 mm

Blade Thickness

4 mm

Hydraulic Pump Brand

PMP / Eaton / Rexroth

Hydraulic Motor Brand

PMP / Rexroth

Reducer Brand

Bonfiglioli / PMP

Water Tank Capacity

400 L

Drum Rotation Speed

0–14 rpm

Feeding Speed

≥3 m³/min

Discharging Speed

≥2 m³/min

Residual Rate

≤0.5%

GVW

41000 kg

Curb Weight

17500 kg

Payload Capacity

25–30 Tons

Maximum Speed

85 km/h

Application

Construction Site / Infrastructure Project / Concrete Transportation

Optional Configuration

Customized Configuration Supported
