SHACMAN X3000 8X4 Oil Tanker Truck-Products Center-SHACMAN AFRICA

Parameter

Specification

Vehicle Model

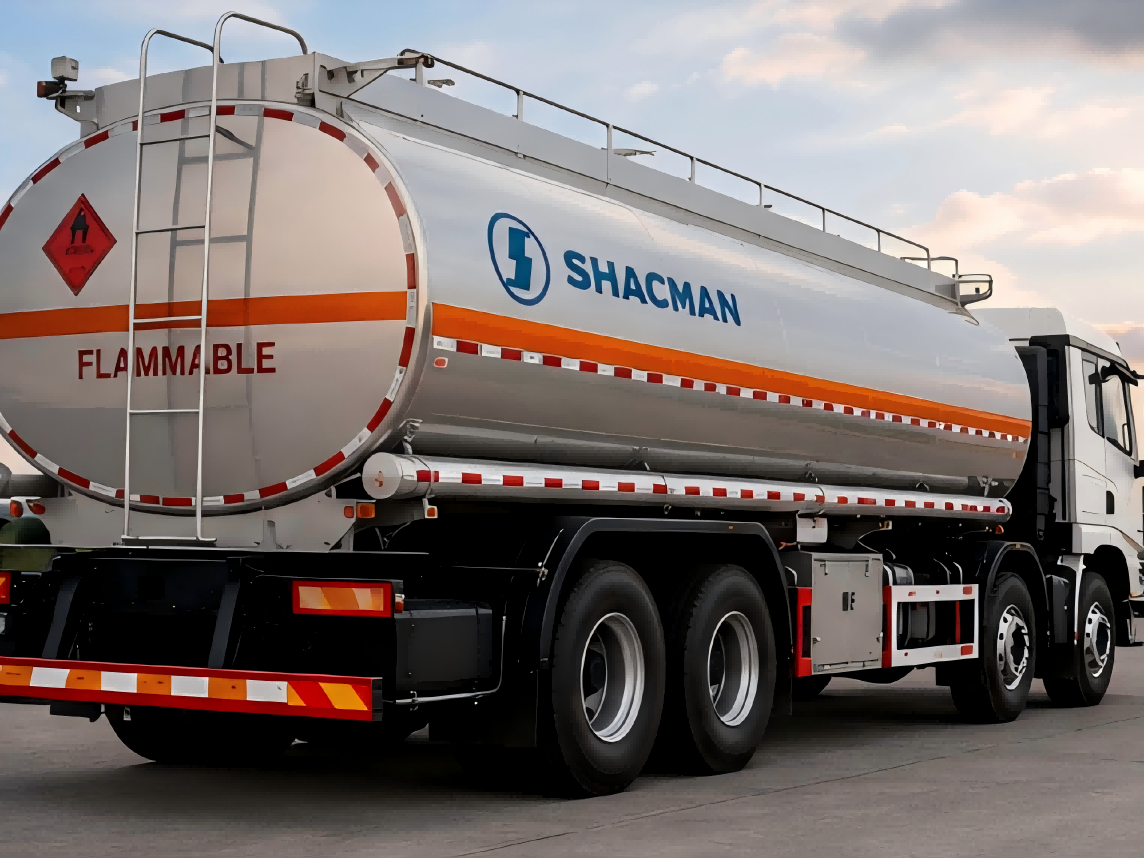

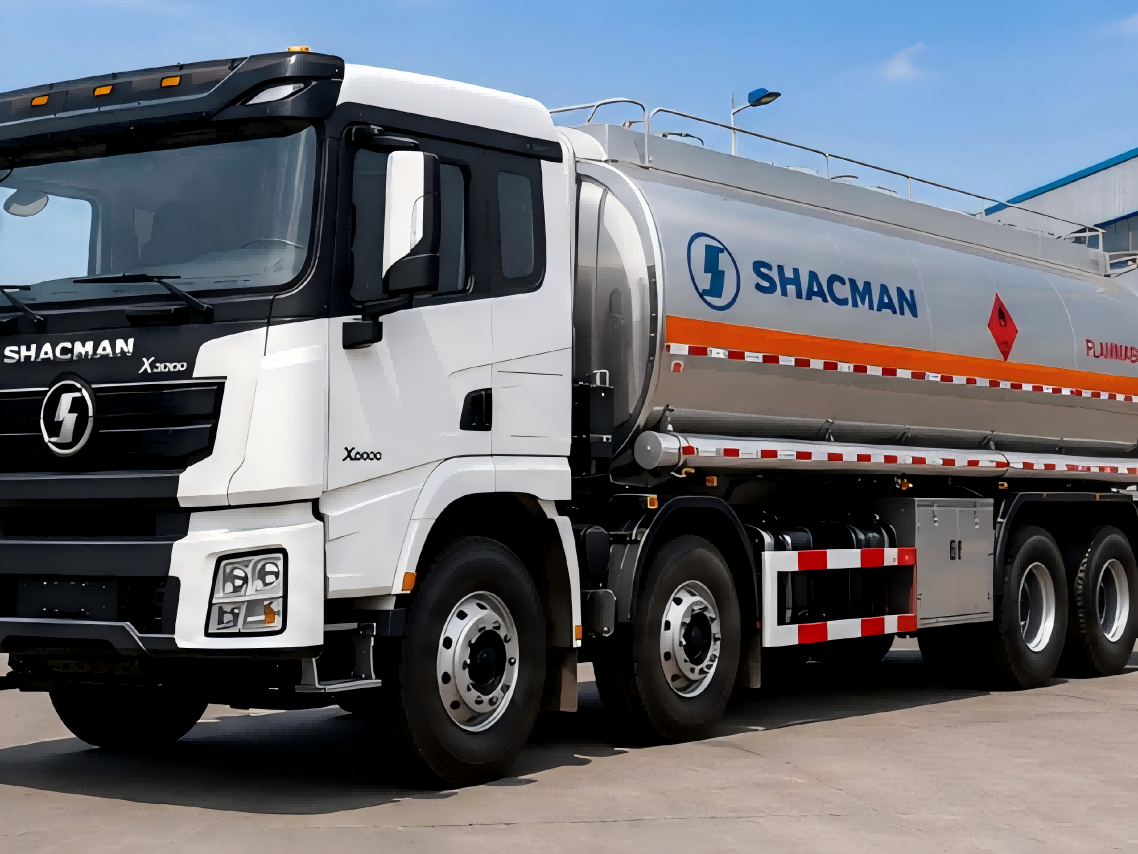

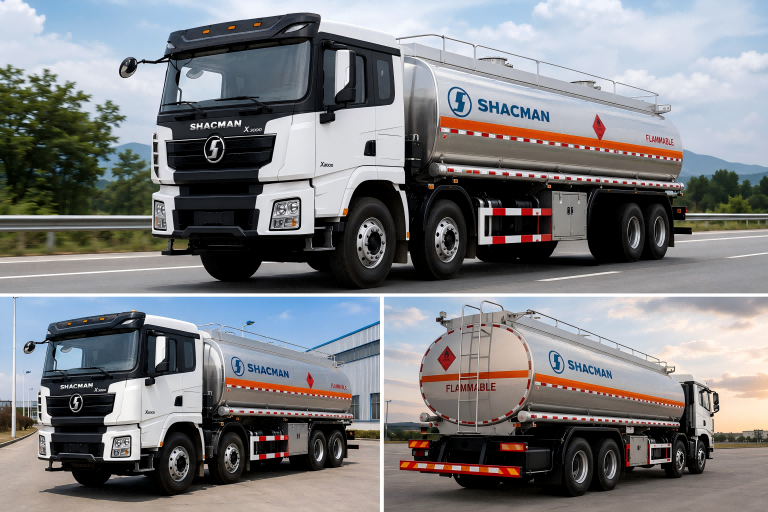

SHACMAN X3000 Oil Tanker Truck

Vehicle Type

Fuel Tank Truck / Oil Tanker Truck

Drive Type

6×4 / 8×4 Optional

Cabin

X3000 High Roof Cabin With Sleeper

Driving Type

Left-hand Drive / Right-hand Drive

Seat Configuration

2 Seats + 1 Sleeper

Cabin Equipment

Air Conditioner, Air Suspension Seat, Electric Window, Central Lock

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP12.430E201

Horsepower

430 HP

Emission Standard

Euro II / Euro III / Euro V

Displacement

11.596 L

Maximum Torque

2060 N·m

Transmission Brand

FAST

Transmission Model

12JSD200T

Gearbox

12 Forward & 2 Reverse

Front Axle

9.5T MAN Axle

Rear Axle

16T MAN Double Reduction Axle

Axle Ratio

4.769 / 5.262 Optional

Steering System

ZF Hydraulic Steering

Brake System

Dual Circuit Air Brake

Parking Brake

Spring Energy Brake

ABS

Optional

Suspension

Heavy-duty Multi-leaf Spring

Fuel Tank Capacity

400 L

Tire Specification

12.00R20 / 315/80R22.5

Number Of Tires

10 + 1 Spare Tire

Wheelbase

4375 + 1400 mm

Overall Dimension

11200 × 2550 × 3650 mm

Tank Capacity

20000–35000 Liters

Tank Material

Carbon Steel / Aluminum Alloy / Stainless Steel

Tank Shape

Ellipse Shape

Compartment Quantity

1–6 Compartments Optional

Tank Thickness

5–6 mm

Baffle Plate

Anti-wave Internal Baffle

Manhole Cover

European Standard Explosion-proof Manhole

Bottom Valve

Pneumatic Emergency Shut-off Valve

Discharge Valve

API Standard Valve

Oil Pump

Self-priming Gear Pump

Flow Meter

Optional

Loading System

Top Loading / Bottom Loading

Static Wire Reel

Equipped

Fire Extinguisher

2 Units Equipped

Ladder & Walkway

Anti-slip Design

GVW

25000–41000 kg

Curb Weight

12500 kg

Payload Capacity

20–30 Tons

Maximum Speed

90 km/h

Transport Medium

Diesel / Petrol / Crude Oil / Lubricant

Application

Fuel Transportation / Oil Delivery / Petroleum Logistics

Optional Configuration

Customized Configuration Supported
