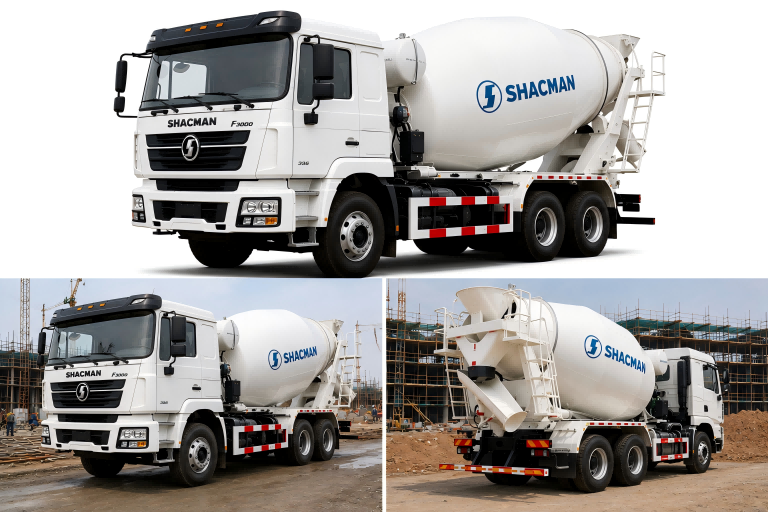

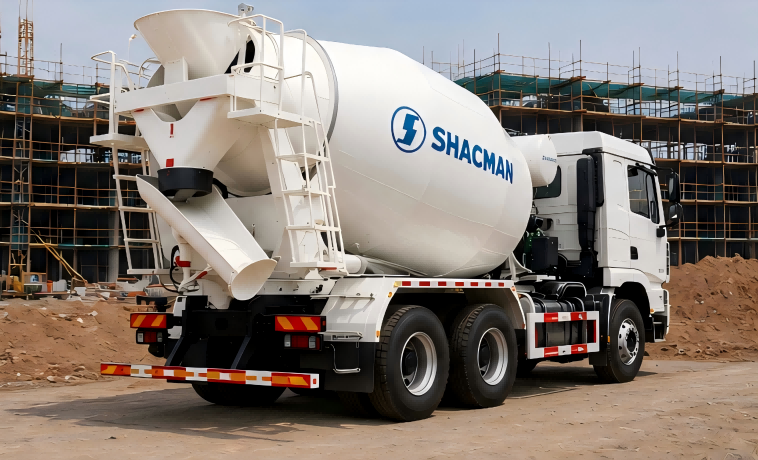

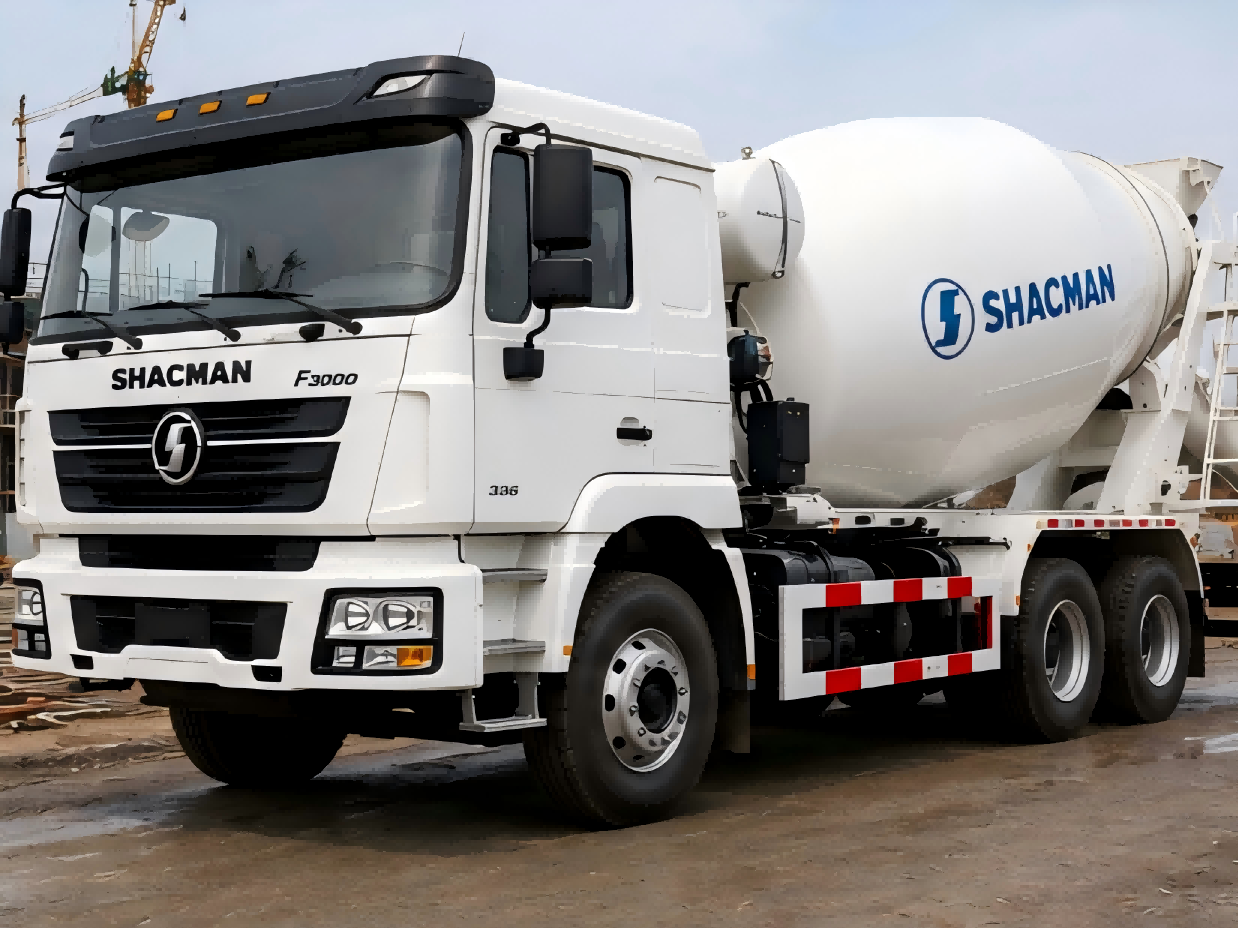

SHACMAN F3000 6X4 Cement Mixer Truck-Products Center-SHACMAN AFRICA

Parameter

Specification

Vehicle Model

SHACMAN F3000 6×4 Cement Mixer Truck

Vehicle Type

Concrete Mixer Truck

Drive Type

6×4

Cabin

F3000 Flat Roof / High Roof Cabin

Driving Type

Left-hand Drive / Right-hand Drive

Seat Configuration

2 Seats + 1 Sleeper

Cabin Equipment

Air Conditioner, Adjustable Seat, Electric Window, Central Lock

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP10.380E22 / WP12.380E201

Horsepower

380 HP

Emission Standard

Euro II / Euro III / Euro IV

Displacement

9.726 L / 11.596 L

Maximum Torque

1600–1800 N·m

Transmission Brand

FAST

Transmission Model

10JSD180 / 12JSD180

Gearbox

10 Forward & 2 Reverse

Front Axle

7.5T MAN Axle

Rear Axle

13T MAN Double Reduction Axle

Axle Ratio

5.262 / 5.92 Optional

Steering System

ZF Hydraulic Steering

Brake System

Dual Circuit Air Brake

Parking Brake

Spring Energy Brake

ABS

Optional

Suspension

Heavy-duty Multi-leaf Spring

Fuel Tank Capacity

300 L

Tire Specification

12.00R20 / 12R22.5

Number Of Tires

10 + 1 Spare Tire

Wheelbase

3975 + 1400 mm

Overall Dimension

9200 × 2500 × 3950 mm

Mixer Drum Capacity

8–12 m³

Mixer Drum Material

Wear-resistant High-strength Steel

Drum Thickness

5 mm

Blade Thickness

4 mm

Hydraulic Pump Brand

PMP / Eaton / Rexroth

Hydraulic Motor Brand

PMP / Rexroth

Reducer Brand

Bonfiglioli / PMP

Water Tank Capacity

350 L

Drum Rotation Speed

0–14 rpm

Feeding Speed

≥3 m³/min

Discharging Speed

≥2 m³/min

Residual Rate

≤0.5%

GVW

25000 kg

Curb Weight

13800 kg

Payload Capacity

12–15 Tons

Maximum Speed

80 km/h

Application

Construction Site / Infrastructure Project / Concrete Transportation

Optional Configuration

Customized Configuration Supported

SHACMAN F3000 6X4 Cement Mixer Truck
