Parameter

Specification

Vehicle Model

SHACMAN F3000 8×4 Lorry Truck

Vehicle Type

Cargo Truck / Lorry Truck

Drive Type

8×4

Cabin

F3000 High Roof Cabin With Sleeper

Driving Type

Left-hand Drive / Right-hand Drive

Seat Configuration

2 Seats + 1 Sleeper

Cabin Equipment

Air Conditioner, Electric Window, Central Lock, Air Suspension Seat

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP12.420E201 / ISM11E5 440

Horsepower

420 HP / 440 HP

Emission Standard

Euro II / Euro III / Euro V

Displacement

11.596 L

Maximum Torque

1900–2100 N·m

Engine Type

6-cylinder In-line, Turbocharged, Intercooler

Transmission Brand

FAST

Transmission Model

12JSD200T

Gearbox

12 Forward & 2 Reverse

Clutch

Φ430mm Diaphragm Spring Clutch

Front Axle

9.5T MAN Axle

Rear Axle

16T MAN Double Reduction Axle

Axle Ratio

4.769 / 5.262 / 5.92 Optional

Steering System

ZF Hydraulic Steering

Brake System

Dual Circuit Air Brake

Parking Brake

Spring Energy Brake

ABS

Optional

Suspension

Heavy-duty Multi-leaf Spring

Fuel Tank Capacity

400 L

Tire Specification

12.00R20 / 315/80R22.5

Number Of Tires

12 + 1 Spare Tire

Wheelbase

1800 + 4575 + 1400 mm

Overall Dimension

12000 × 2500 × 3400 mm

Cargo Box Length

9500–9800 mm

Cargo Box Width

2350–2450 mm

Cargo Box Height

600–2500 mm Optional

Cargo Box Type

Flatbed / Stake / Side Wall / Van Cargo

Cargo Floor Thickness

3–5 mm Checkered Plate

Side Wall Thickness

1.5–2.5 mm

Loading Capacity

25–35 Tons

GVW

31000 kg

Curb Weight

13500 kg

Payload Capacity

25–30 Tons

Maximum Speed

90 km/h

Electrical System

24V Negative Ground

Battery

2 × 12V / 165Ah

Alternator

28V–1500W

Starter

7.5 kW / 24V

Paint

Anti-corrosion Primer + Top Coat

Application

General Cargo Transportation / Logistics / Long Distance Transport

Optional Configuration

Customized Configuration Supported

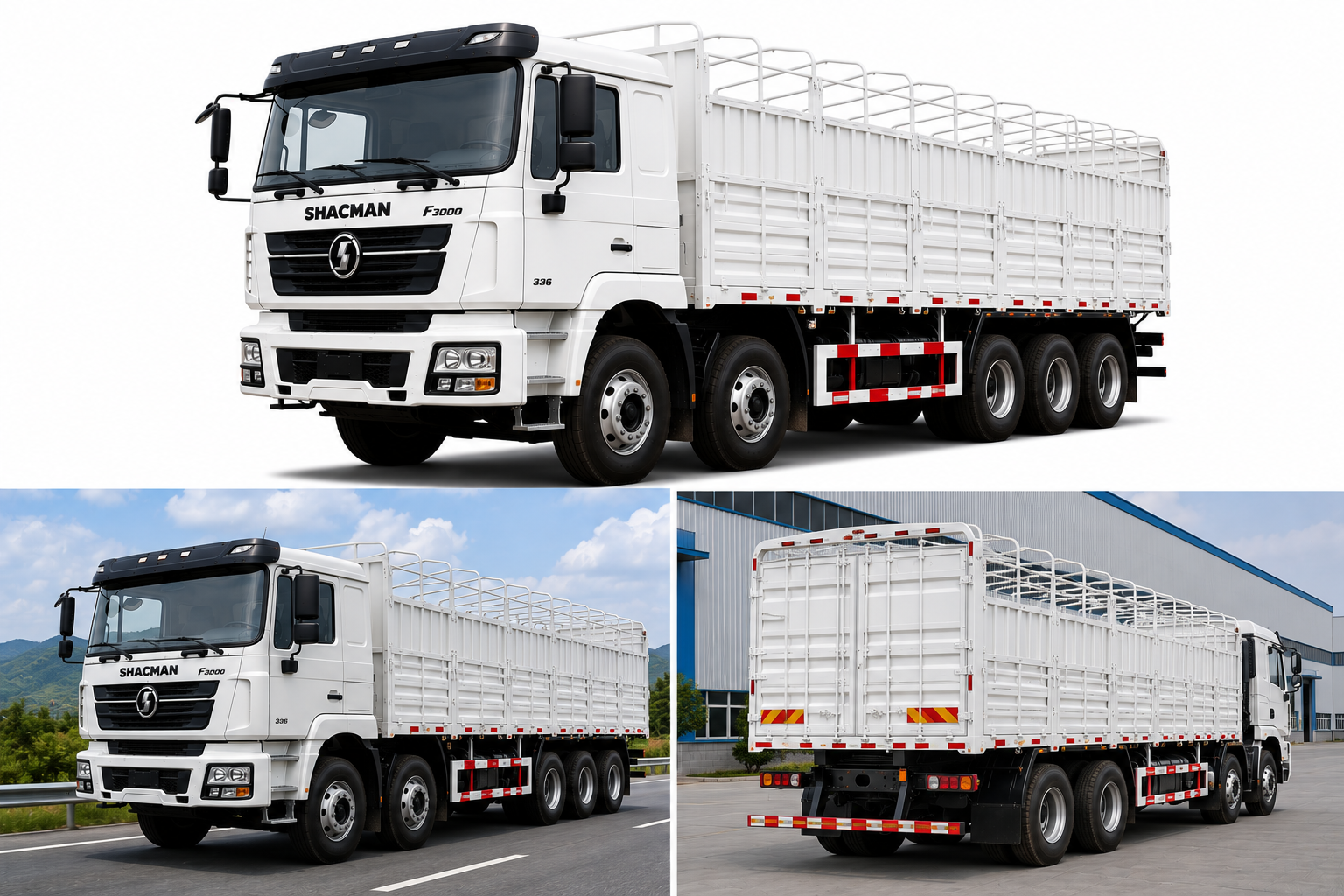

SHACMAN F3000 8X4 Lorry Truck
